ESU 50310 CABCONROL WIRELESS CONTROL SYSTEM WIFI

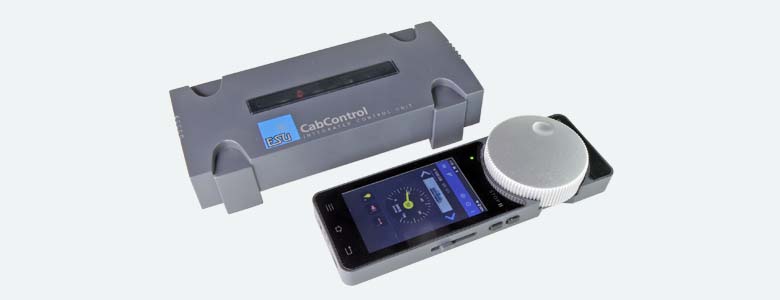

CabControl - Integrated Control Unit

ESU’s “North American” System

This system was specially developed for use in North America and Australia.

• Built-in American and Australian locomotive icons (along with European Icons) with the capability to add your own custom images

• Easy Consisting for multiple unit lash-ups with the ability to add / remove locomotives quickly “on the fly”

• Wireless walk around system making it easy to follow your train on a large layout.

Technical Specification

CabControl Features

• All DCC modes (14, 28, 128 speed steps) Long and short addresses

• Over 16,000 locomotives can be arranged and controlled

• Up to 30 functions per locomotive

• Real scale speed feedback in KPH or MPH (requires ESU decoders)

• All-New Physical Brake Slider to simulate the brake handle in a locomotive (Mobile Control Pro only) plus 2 more on-screen brake sliders for smooth stopping of locomotives (requires ESU decoders)

• WiThrottle compatible™

• All Scales can be used with the CabControl system with the variable voltage 7 Amp Power Supply

Built-in WLAN Access Point

• Creates a unique WiFi-Network for your Mobile Control Pro / Mobile Control II Wireless throttles

• Supports at least 32 Mobile Control Pro / Mobile Control II Wireless Throttles Compliant with all relevant IEEE WLAN standards. Suitable for use in North America, Australia, and Europe

• The CabControl features a LAN port to connect the ICU to your home network.

• Via the home network, the CabControl can be connected to Model Railroad Control Software.

“ECoSlink” port

• For easy connection with our ESU boosters, CabControl supports ECoSlink, a high speed, CAN based bus system.

The CabControl built-in booster has so much power that, in most cases, you don‘t need additional ones.

Hook Up

Hook up is simple with the CabControl system. All you have to do is plug the 7 Amp power supply into the CabControl box and then hook up your CabControl ICU to your track for power and it's ready to go!  The wireless throttles automatically connect to the system via WiFi.
